A Primer to Understanding Layouts in NVIDIA CuTe

CuTe is a collection of C++ CUDA template abstractions for defining and operating on hierarchically multidimensional layouts of threads and data. CuTe provides Layout and Tensor objects that compactly packages the type, shape, memory space, and layout of data, while performing the complicated indexing for the user.

What exactly are Layouts?

A layout is a function that maps a logical coordinate to a physical offset in memory. Every layout in CuTe is defined by two things: a shape and a stride.

Given a coordinate c and a stride s, the physical offset is simply c × s. For multiple dimensions, you sum over all dimensions:

$$\mathrm{offset}=c_0\times s_0+c_1\times s_1+\cdots$$

That's the whole formula.

1D Layout

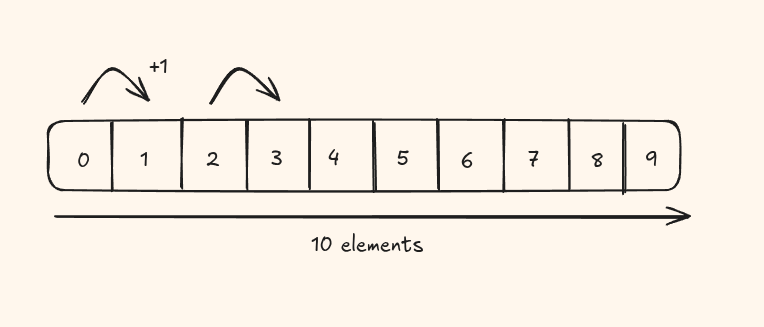

The simplest layout is a flat 1D array. We have 10 elements laid out contiguously in memory. To move from one element to the next, we jump by 1. So:

          Layout = (shape, stride) = (10, 1)

The shape tells you how many elements exist, and the stride tells you how far apart they are in memory.

2D Layout

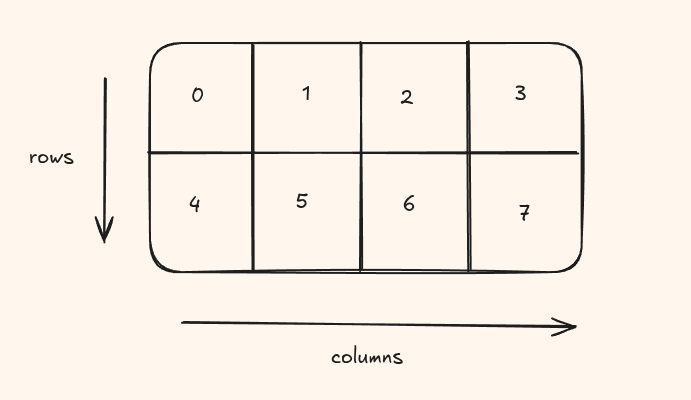

For 2D tensors, you need two dimension - one across the row and another across the column. This two dimensional space is the logical representation of the tensor. But remember in the computer, the physical representation is still a single flat array.

For a matrix with shape (M, N) and strides (s_row, s_col), the formula is:

            offset(row, col) = row × s_row + col × s_col

The question is: what should s_row and s_col be? This is exactly where row-major and column-major formats come in.

Row major format

In row major order, elements within the same row are contiguous in memory. You fill in row 0 entirely, then row 1, and so on. For an M x N matrix, the strides are:

          Layout = (shape, stride) = ((M, N), (N, 1))

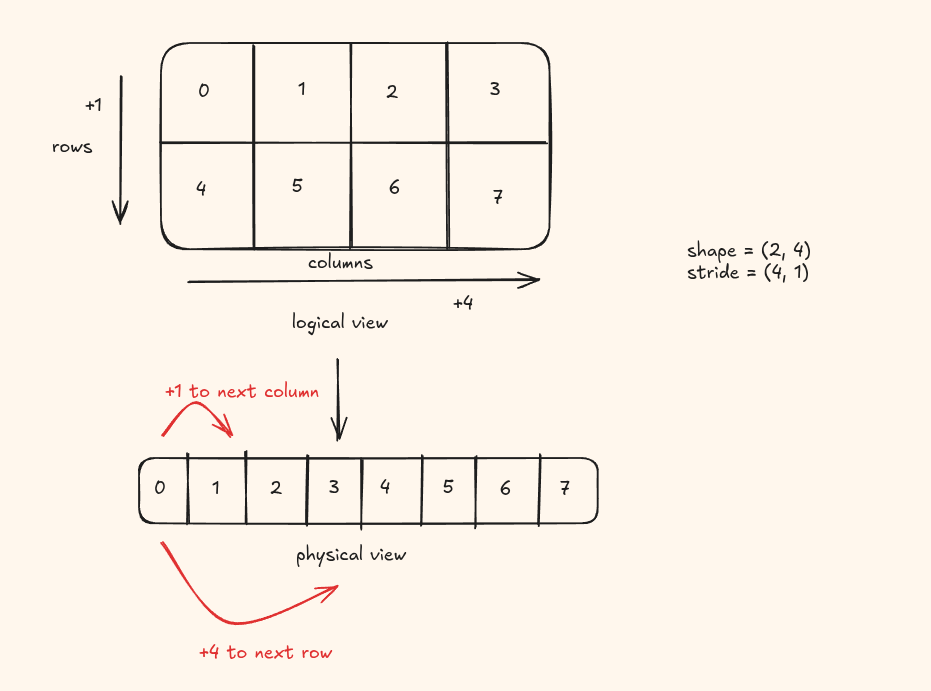

          2 x 4 matrix is represented as  ((2, 4), (4, 1))

Moving across a column (incrementing col) costs 1 hop. Moving down a row (incrementing row) costs N hops, because you must skip over the entire row above.

Column major format

In column major order, elements within the same column are contiguous. You fill in column 0 entirely, then column 1, and so on. For an M x N matrix:

          Layout = (shape, stride) = ((M, N), (1, M))

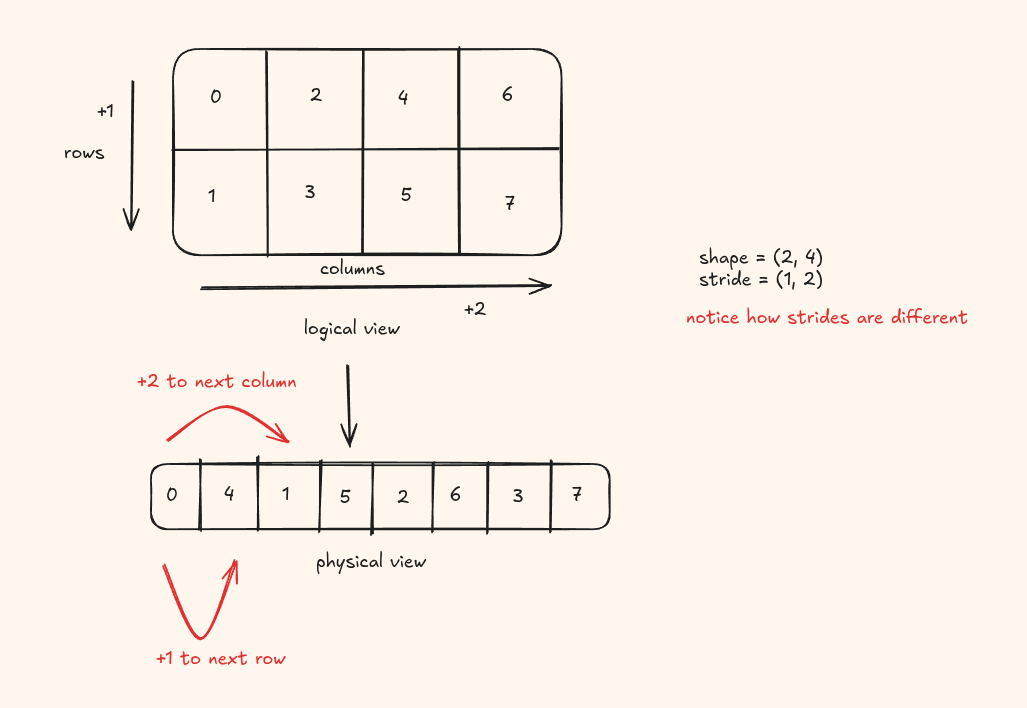

          2 x 4 matrix is represented as ((2, 4), (1, 2))

Now moving down a row costs 1 hop (elements in the same column are adjacent), and moving across a column costs M hops.

Nested Layouts

So far, shapes and strides have been flat numbers. Nested layouts allow shapes and strides to themselves be tuples creating a hierarchy of dimensions.

You have a 128 x 128 matrix, and you want to partition it into 32 x 32 tiles for processing by thread blocks. Each tile is itself laid out row major. A nested layout lets you express this tiling directly, instead of computing index arithmetic by hand.

Well, we need an example to understand this more clearly.

Layout (4, (2, 4)) : (2, (1, 8))

What does this even mean?

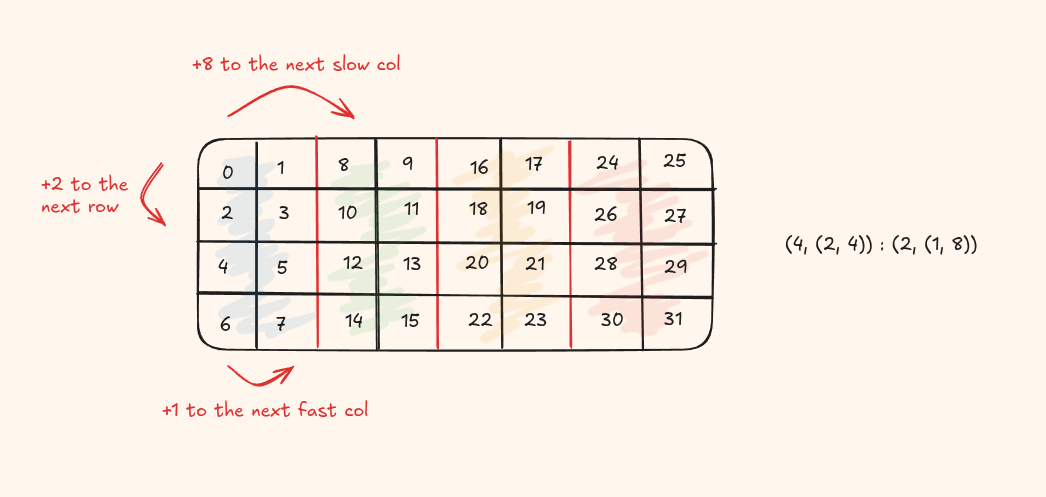

The column dimension is itself a nested layout (2, 4) : (1, 8). This means: first iterate over 2 contiguous elements (stride 1), then step to the next group of 2 by jumping 8 (stride 8), and do this 4 times.

In the next blog, I will walk through the algebra of the layouts, until then, ciao!
