Outperforming cuBLAS on Ada Lovelace using CuTe DSL

Kernel 1 - Naive Matrix Multiplication

The simplest GPU implementation maps one thread to each output element \(C_{ij}\). That thread loads an entire row of A and an entire column of B from global memory, then accumulates their dot product.

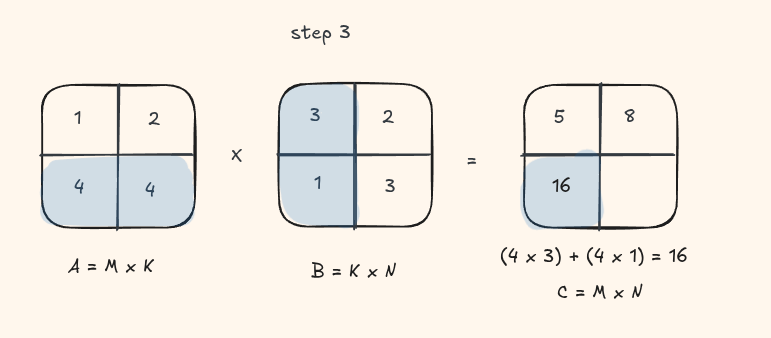

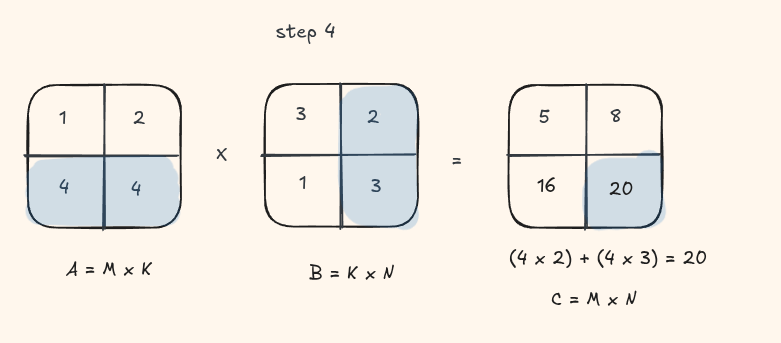

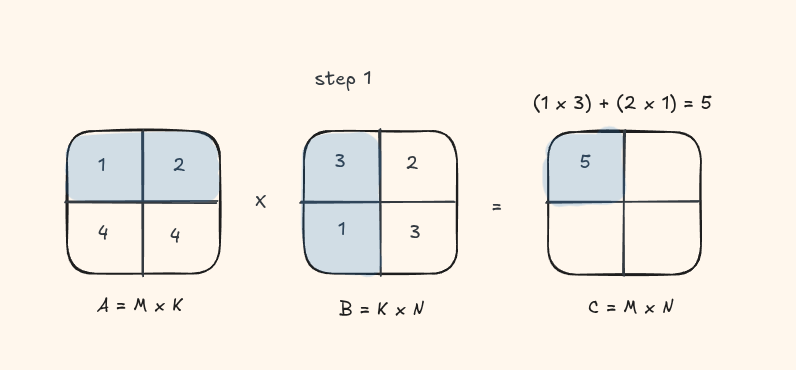

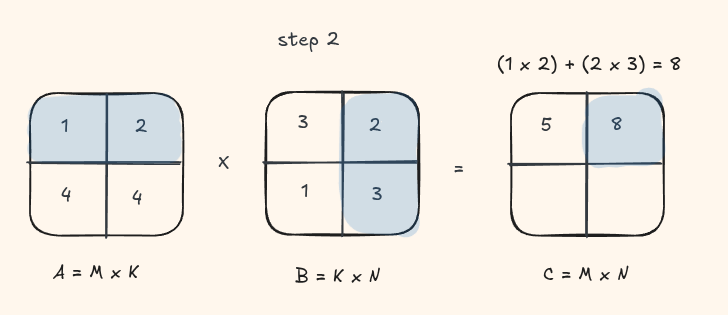

Let's take a look at this visually with a small matrix

Implementation:

@cute.kernel
def matmul_kernel(A: cute.Tensor, B: cute.Tensor, C: cute.Tensor, M, N, K):
    bidx_x, bidx_y = cute.arch.block_idx()[0], cute.arch.block_idx()[1]
    bdim_x, bdim_y = cute.arch.block_dim()[0], cute.arch.block_dim()[1]
    tidx_x, tidx_y = cute.arch.thread_idx()[0], cute.arch.thread_idx()[1]

    col = bidx_x * bdim_x + tidx_x
    row = bidx_y * bdim_y + tidx_y

    # no early return supported yet
    # ref - https://docs.nvidia.com/cutlass/latest/media/docs/pythonDSL/cute_dsl_general/dsl_control_flow.html

    acc = cute.Float32(0)

    if row < M and col < N:
        for k in range(K):
            acc += cute.Float32(A[row, k]) * cute.Float32(B[k, col])

        C[row, col] = cute.Float16(acc)

Performance and Profiling

This kernel has 1.33 TFLOP/s with a kernel execution time of 13.29 ms. This is roughly ~11% of what cuBLAS gives us.

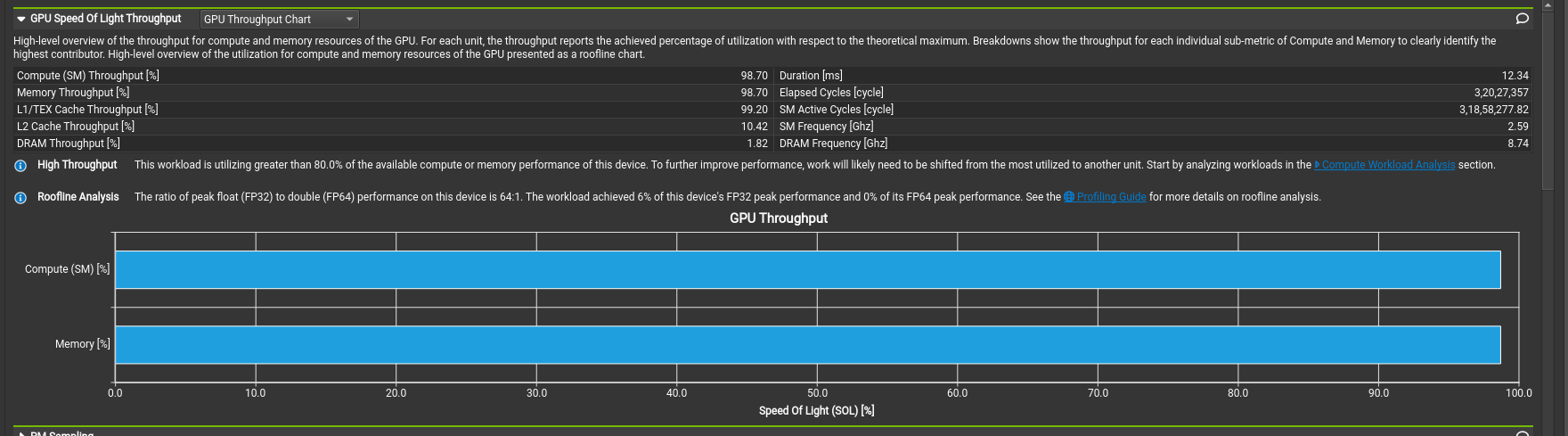

Now let's turn our attention to what the NCU profiler has to say about this kernel.

On a first glance, it says that the compute and memory throughput to be extremely high, but how can this be possible? All we wrote was an extremely naive kernel in hardly 15 lines.

Pay attention to two things:

1. The line stating "The workload achieved 6% of this device's FP32 peak performance"

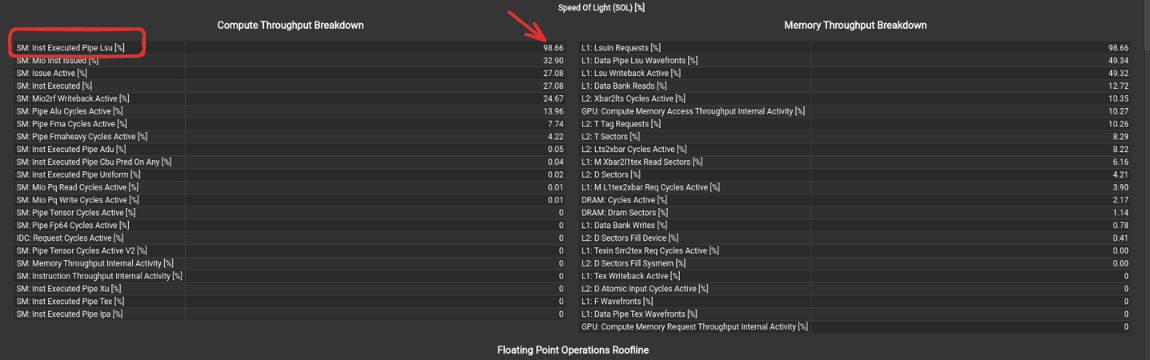

2. Expand the section and check the individual breakdown for the compute throughput

Oh, what's this? From the docs, we get The LSU pipeline issues load, store, atomic, and reduction instructions to the L1TEX unit for global, local, and shared memory And that's 98% of our compute throughput! This means the warp scheduler is almost constantly issuing load/store instructions and is hardly using any of our compute units.

Kernel 2 - Tiled MMA

The first big jump comes from tiling the problem. Instead of having every thread access data directly from global memory, we move tiles of A and B into shared memory, partition them across threads, and accumulate into register fragments.

For this, we will use a trivial 1x1x1 MMA atom that uses FPU for matrix-multiple accumulate(MMA) operations. We are not using tensor cores here.

Create Copy Atoms on the host side

We create copy atoms for A and B with a specific thread value layout. For now each thread moves a single FP32 element. We will later see how to move 128 bit copy width ie. 4 FP32 elements at once.

thr_layout_a = cute.make_ordered_layout(shape=(threads // tile_k, tile_k), order=(1, 0))
val_layout_a = cute.make_layout((1, 1))
async_copy_atom_a = cute.make_copy_atom(
    cute.nvgpu.CopyUniversalOp(),
    cutlass.Float32,
    num_bits_per_copy = a.element_type.width # 32 bits
)
tiled_copy_a = cute.make_tiled_copy_tv(async_copy_atom_a, thr_layout_a, val_layout_a) # do the same for B

Create the Tiled MMA

The tiled MMA requires 3 MNK layout, so we add 1 to the K dimension with a stride 0.

mma_op = cute.nvgpu.MmaUniversalOp(cutlass.Float32)
mma_atoms_layout = cute.make_layout((mma_m, mma_n, 1), stride=(mma_n, 1, 0))
tiled_mma = cute.make_tiled_mma(
    mma_op,
    atom_layout_mnk=mma_atoms_layout,
)

1. Map each block and thread to a tile

This decides which block of A, B, and C this CTA works on.

tid_x, _, _ = cute.arch.thread_idx()
bid_x, bid_y, _ = cute.arch.block_idx()

tiler_coord = (bid_x, bid_y, None)
gA = cute.local_tile(A, cta_tiler, tiler_coord, proj=(1, None, 1))
gB = cute.local_tile(B, cta_tiler, tiler_coord, proj=(None, 1, 1))
gC = cute.local_tile(C, cta_tiler, tiler_coord, proj=(1, 1, None))

2. Create thread value partitions for each tile

For each thread index, we get a slice of the value it owns from the tv layout, and then apply it using partition on both source and destination.

smem = cutlass.utils.SmemAllocator()
sA = smem.allocate_tensor(cutlass.Float32, smem_layout_a, 16)
sB = smem.allocate_tensor(cutlass.Float32, smem_layout_b, 16)

thr_copy_a = tiled_copy_a.get_slice(tid_x)
thr_copy_b = tiled_copy_b.get_slice(tid_x)

tAgA = thr_copy_a.partition_S(gA)  # source in global
tBgB = thr_copy_b.partition_S(gB)
tAsA = thr_copy_a.partition_D(sA)  # destination in shared
tBsB = thr_copy_b.partition_D(sB)

3. Build a 1x1x1 MMA Atom

mma_op = cute.nvgpu.MmaUniversalOp(cutlass.Float32)
mma_atoms_layout = cute.make_layout((mma_m, mma_n, 1), stride=(mma_n, 1, 0))
tiled_mma = cute.make_tiled_mma(
    mma_op,
    atom_layout_mnk=mma_atoms_layout,
)

thr_mma = tiled_mma.get_slice(tid_x)
tCsA = thr_mma.partition_A(sA)
tCsB = thr_mma.partition_B(sB)
tCgC = thr_mma.partition_C(gC)

tCrA = tiled_mma.make_fragment_A(tCsA)
tCrB = tiled_mma.make_fragment_B(tCsB)
tCrC = tiled_mma.make_fragment_C(tCgC)
tCrC.fill(0.0)

`tCrC` is the accumulator fragment in registers. This is where repeated MMA operations accumulate partial sums.

4. Main K loop

For each K tile -

• Load from global to shared memory
• Load from shared memory into register fragments
• Once the tile is in registers, run the GEMM
• Move to the next tile

num_tiles_k = cute.size(tAgA, mode=[3])
num_mma_k = cute.size(tCrA, mode=[2])

for tile_k_idx in range(num_tiles_k, unroll_full=False):
    cute.copy(tiled_copy_a, tAgA[None, None, None, tile_k_idx], tAsA)
    cute.copy(tiled_copy_b, tBgB[None, None, None, tile_k_idx], tBsB)
    cute.arch.barrier()  # like __syncthreads()

    for mma_k_idx in range(num_mma_k, unroll_full=True):
        cute.autovec_copy(tCsA[None, None, mma_k_idx], tCrA[None, None, mma_k_idx])
        cute.autovec_copy(tCsB[None, None, mma_k_idx], tCrB[None, None, mma_k_idx])
        cute.gemm(
            tiled_mma,
            tCrC,
            tCrA[None, None, mma_k_idx],
            tCrB[None, None, mma_k_idx],
            tCrC,
        )

    cute.arch.barrier()

5. Epilogue - store to C

After accumulation, we can write results back.

tCrC.store(epilogue_op(tCrC.load()))
c_copy_atom = cute.make_copy_atom(cute.nvgpu.CopyUniversalOp(), cutlass.Float32)
cute.copy(c_copy_atom, tCrC, tCgC)

Performance and Profiling

This kernel has 7.37 TFLOP/s and we are already at ~64.1% of what cuBLAS gives us.

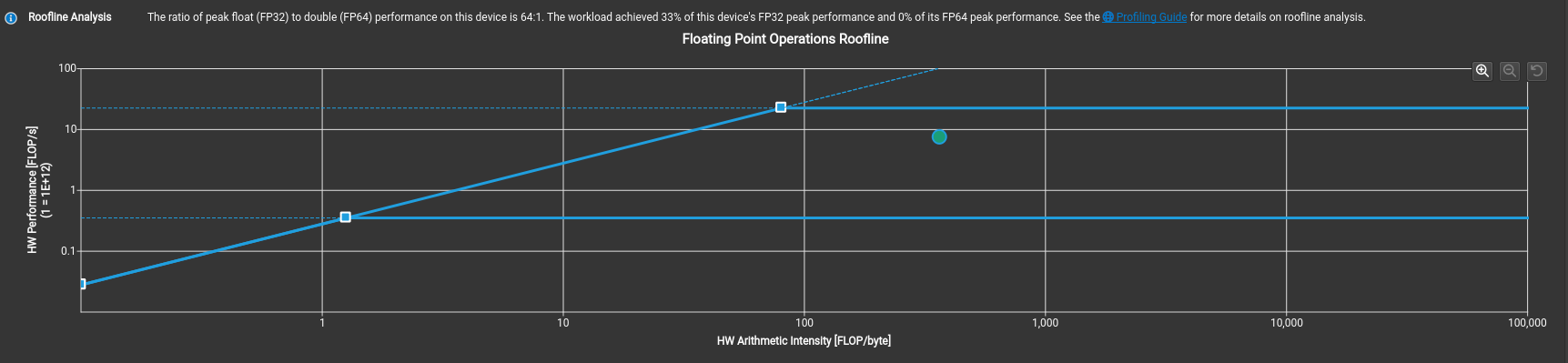

Profiling time!

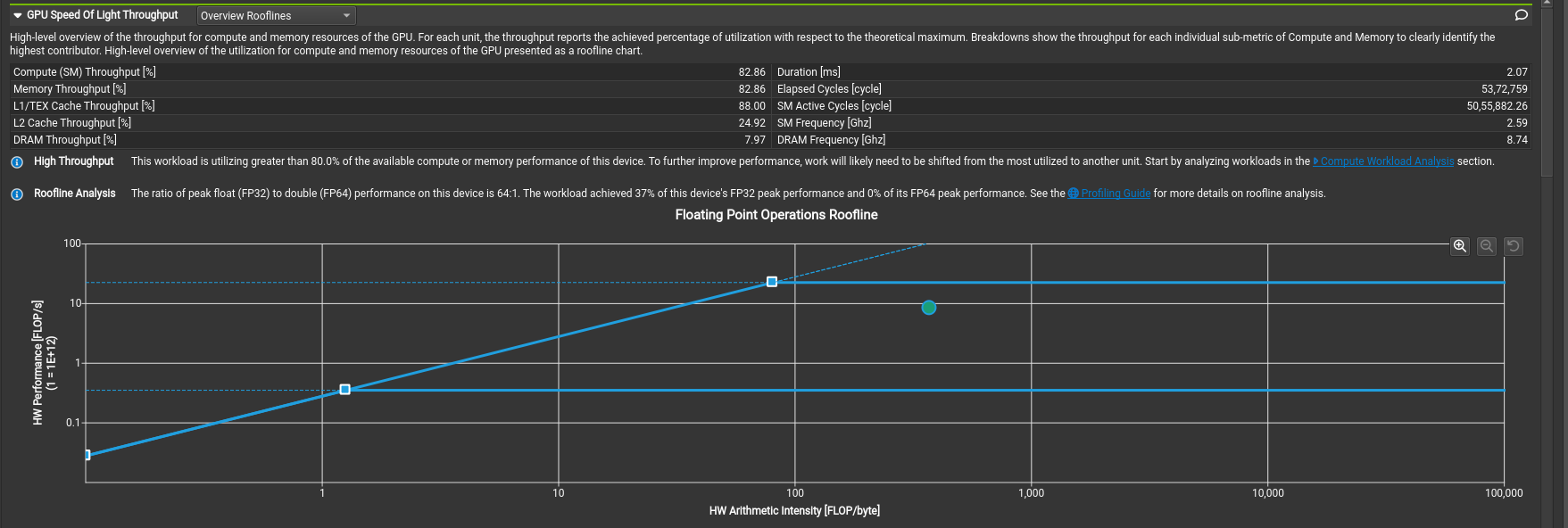

Great! This achieves 33% of this device's FP32 peak performance, and take a look at the roofline.

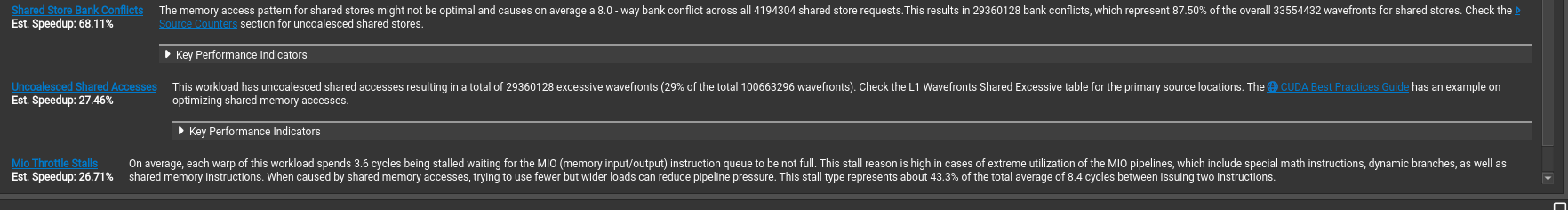

From the recommendations, the most taxing one seems to be bank conflicts, so why don't we try to fix that?

Kernel 3 - Fixing Bank Conflicts!

Bank conflicts occur in shared memory and it has very different properties compared to global memory.

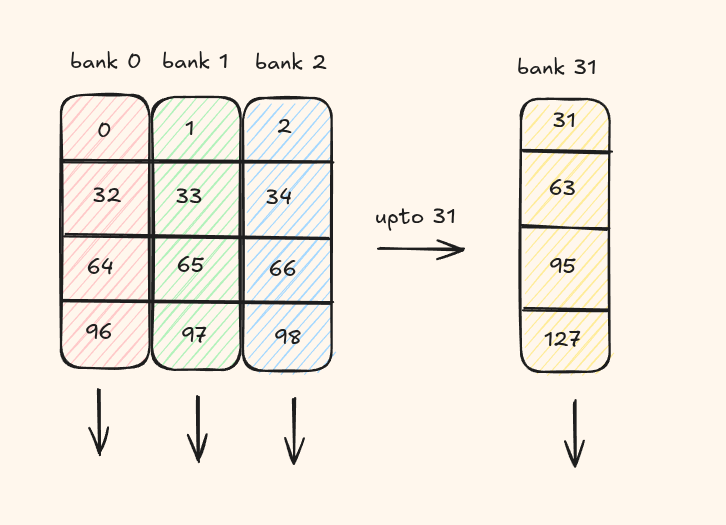

SMEM is organized into 32 banks, each bank being 32 bit wide.

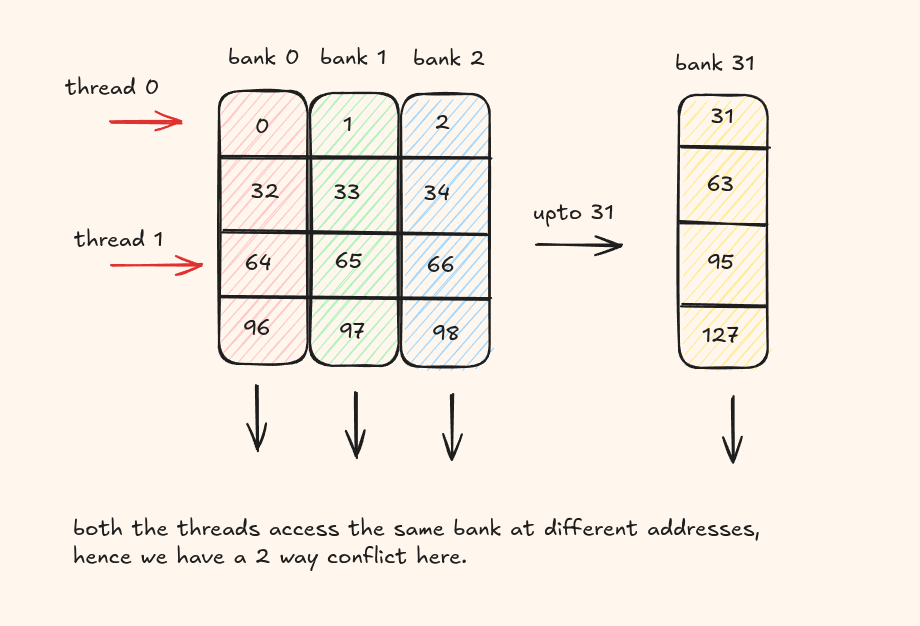

Threads in a warp must not access different addresses within the same bank. Otherwise, those requests are serialized across multiple cycles.

This situation is known as a bank conflict. If N threads access different addresses of the same bank, the result is an N-way bank conflict and the warp's memory request takes N cycles to complete.

The easiest way to fix this is to add some padding to change the layout of the addresses.

@cute.jit
def sgemm_host(a: cute.Tensor,
               b: cute.Tensor,
               c: cute.Tensor,
               copy_bits: cutlass.Constexpr = 128):

    tile_m, tile_n, tile_k = cta_tiler
    mma_m, mma_n = mma_tiler
    threads = mma_m * mma_n

    a_major_mode = cutlass.utils.LayoutEnum.from_tensor(a)
    b_major_mode = cutlass.utils.LayoutEnum.from_tensor(b)

    print(a_major_mode, b_major_mode) # both row major

    smem_layout_a = cute.make_layout(
        shape=(tile_m, tile_k), stride=(1, tile_m + 4) # + 4 for padding
    )
    smem_layout_b = cute.make_layout(
        shape=(tile_n, tile_k), stride=(1, tile_n + 4)
    )

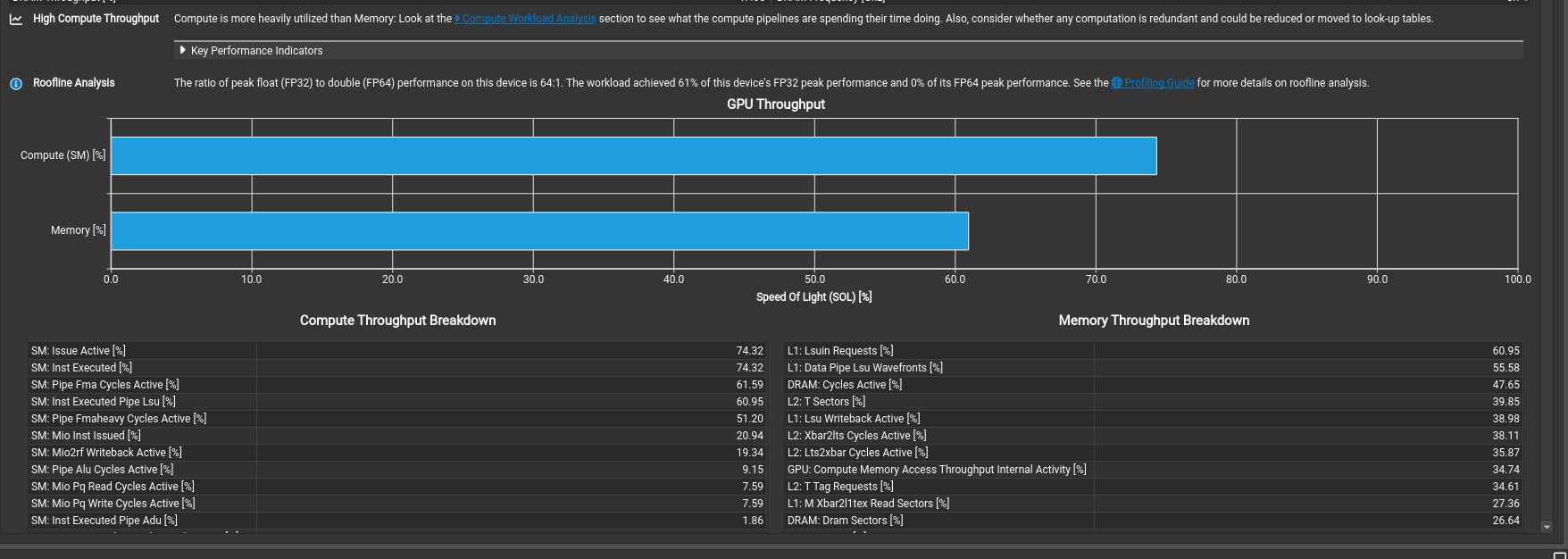

No more bank conflicts, and improved peak FP32 performance as well.

This kernel now has 8.34 TFLOP/s and we are at ~71.1% of cuBLAS!

Kernel 4 - Multistage Pipelining with cp.async

Usually, data transfers from global memory to shared memory are slower than performing the actual arithmetic operation. During this time, all the threads are stalled/idle waiting for data and this kills our performance. We need a way to hide this latency. We use a technique called pipelining where we try to overlap the data transfers along with computation.

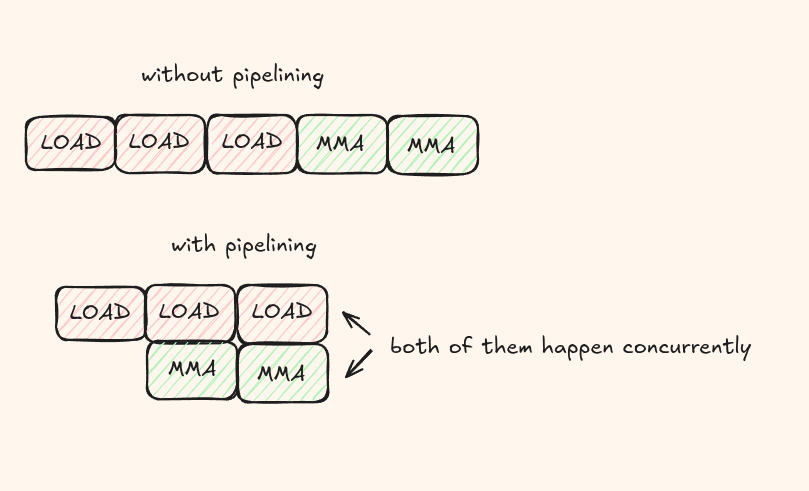

The idea is while we compute on the current tile, we asynchronously load the next tile from global memory into another shared-memory stage.

So instead of first loading everything into the shared memory, we can prefetch N tiles, perform a MMA operation, fetch another tile, perform another MMA operation and so on. This process is asynchronous so all of them happen at the same time!

Pipeline setup (3 stages)

We choose a 3-stage shared-memory pipeline and keep the same CTA/MMA tile sizes.

num_stages = 3
cta_tiler = (128, 128, 8)
mma_tiler = (16, 16)

one stage is being consumed by MMA, one stage is ready next, and one stage is available for incoming async copies. This means that we need to allocate 3x more space for the shared memory but this is usually fine.

1. Tile mapping and per-thread partitions

As before, we tile the matrices A and B. Then each thread gets its copy partitions for global-to-shared movement.

tid_x, _, _ = cute.arch.thread_idx()
bid_x, bid_y, _ = cute.arch.block_idx()
tiler_coord = (bid_x, bid_y, None)

gA = cute.local_tile(A, cta_tiler, tiler_coord, proj=(1, None, 1))
gB = cute.local_tile(B, cta_tiler, tiler_coord, proj=(None, 1, 1))
gC = cute.local_tile(C, cta_tiler, tiler_coord, proj=(1, 1, None))

smem = cutlass.utils.SmemAllocator()
sA = smem.allocate_tensor(cutlass.Float32, smem_layout_a, 16)
sB = smem.allocate_tensor(cutlass.Float32, smem_layout_b, 16)

thr_copy_a = tiled_copy_a.get_slice(tid_x)
thr_copy_b = tiled_copy_b.get_slice(tid_x)
tAgA = thr_copy_a.partition_S(gA); tAsA = thr_copy_a.partition_D(sA)
tBgB = thr_copy_b.partition_S(gB); tBsB = thr_copy_b.partition_D(sB)

2. Prologue - prefetch global to shared

Before compute starts, we prefill `stage - 1` tiles into the shared memory. This gives compute something ready to consume immediately.

smem_pipe_depth = cute.size(tAsA, mode=[3])   # 3 stages
num_tiles_k = cute.size(tAgA, mode=[3])
gmem_pipe_read = cutlass.Int32(0)

for pipe in range(0, smem_pipe_depth - 1, unroll_full=True):
    cute.copy(tiled_copy_a, tAgA[None, None, None, gmem_pipe_read], tAsA[None, None, None, pipe])
    cute.copy(tiled_copy_b, tBgB[None, None, None, gmem_pipe_read], tBsB[None, None, None, pipe])
    cute.arch.cp_async_commit_group()
    gmem_pipe_read += 1

3. Build MMA fragments and initialize pipe pointers

We create A/B/C MMA fragments, zero the accumulator, then initialize which shared stage to read from and which stage to write next.

thr_mma = tiled_mma.get_slice(tid_x)
tCsA = thr_mma.partition_A(sA)
tCsB = thr_mma.partition_B(sB)
tCgC = thr_mma.partition_C(gC)

tCrA = tiled_mma.make_fragment_A(tCsA[None, None, None, 0])
tCrB = tiled_mma.make_fragment_B(tCsB[None, None, None, 0])
tCrC = tiled_mma.make_fragment_C(tCgC)
tCrC.fill(0.0)

smem_pipe_read = cutlass.Int32(0)
smem_pipe_write = cutlass.Int32(smem_pipe_depth - 1)

4. Mainloop - overlap memory and compute

This is the core pipeline. We keep the compute running while issuing async loads for the next tile.

for _ in range(num_tiles_k, unroll_full=False):
    for mma_k_idx in range(num_mma_k, unroll_full=True):
        if mma_k_idx == num_mma_k - 1:
            cute.arch.cp_async_wait_group(smem_pipe_depth - 2)
            cute.arch.barrier()

        mma_k_next = (mma_k_idx + 1) % num_mma_k
        cute.autovec_copy(tCsA_[None, None, mma_k_next], tCrA[None, None, mma_k_next])
        cute.autovec_copy(tCsB_[None, None, mma_k_next], tCrB[None, None, mma_k_next])

        if mma_k_idx == 0:
            cute.copy(tiled_copy_a, tAgA[None, None, None, gmem_pipe_read], tAsA[None, None, None, smem_pipe_write])

        cute.gemm(tiled_mma, tCrC, tCrA[None, None, mma_k_idx], tCrB[None, None, mma_k_idx], tCrC)

        if mma_k_idx == 0:
            cute.copy(tiled_copy_b, tBgB[None, None, None, gmem_pipe_read], tBsB[None, None, None, smem_pipe_write])
            cute.arch.cp_async_commit_group()

While the current tile is being computed, the next tile is being loaded, and so on.

cp_async_wait_group(N) waits until N groups are complete. This function blocks execution until the specified number of previously committed cp.async-groups have completed their memory transfers.

5. Epilogue and store

The final stage where we apply any transformation if needed and then write back to C.

cute.arch.cp_async_wait_group(0)
cute.arch.barrier()
tCrC.store(epilogue_op(tCrC.load()))

c_copy_atom = cute.make_copy_atom(cute.nvgpu.CopyUniversalOp(), cutlass.Float32)
cute.copy(c_copy_atom, tCrC, tCgC)

I was a bit surprised when i first saw that the kernel did worse than just the Tiled MMA kernel

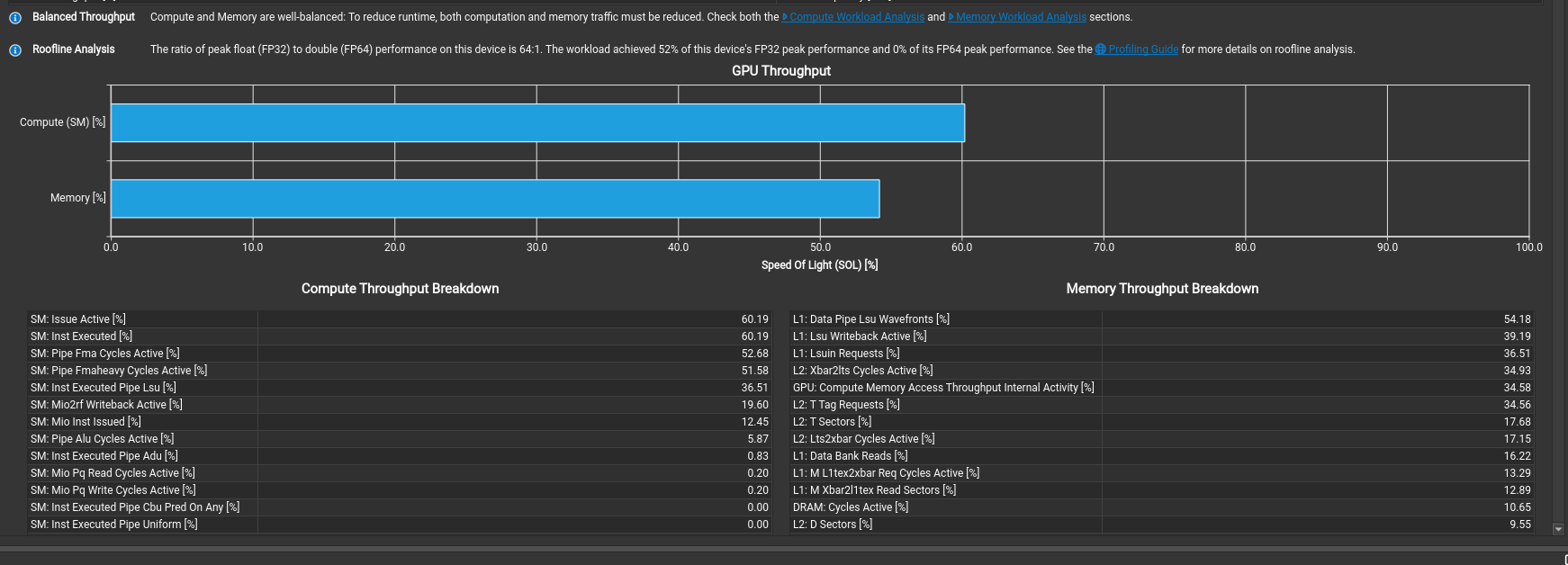

This kernel gives 7.40 TFLOP/s and is slower than the previous kernel. Profiling this was very important to understand why.

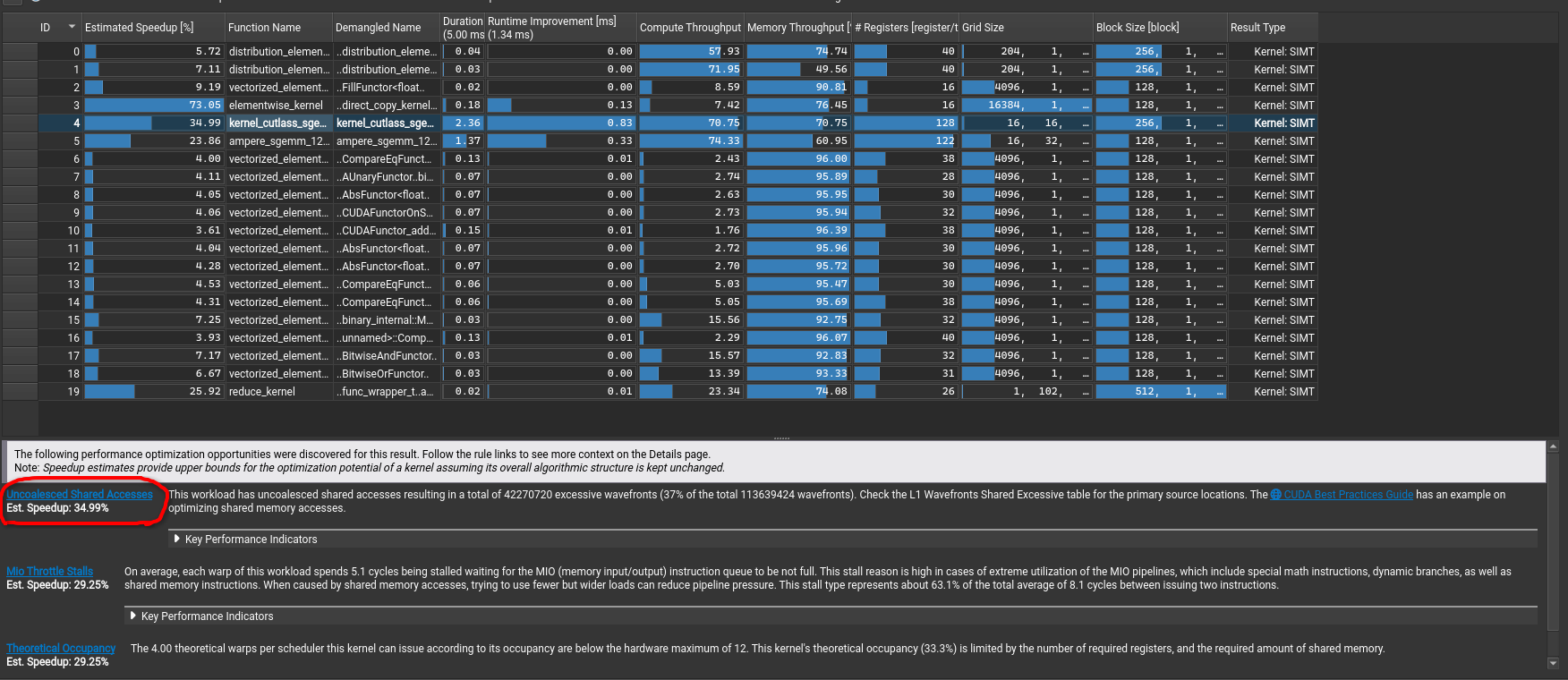

Aha, even though we managed to hide latency, we actually introduced lots of uncoalesced memory accesses and this in fact is making it slower than our way simpler kernel we had.

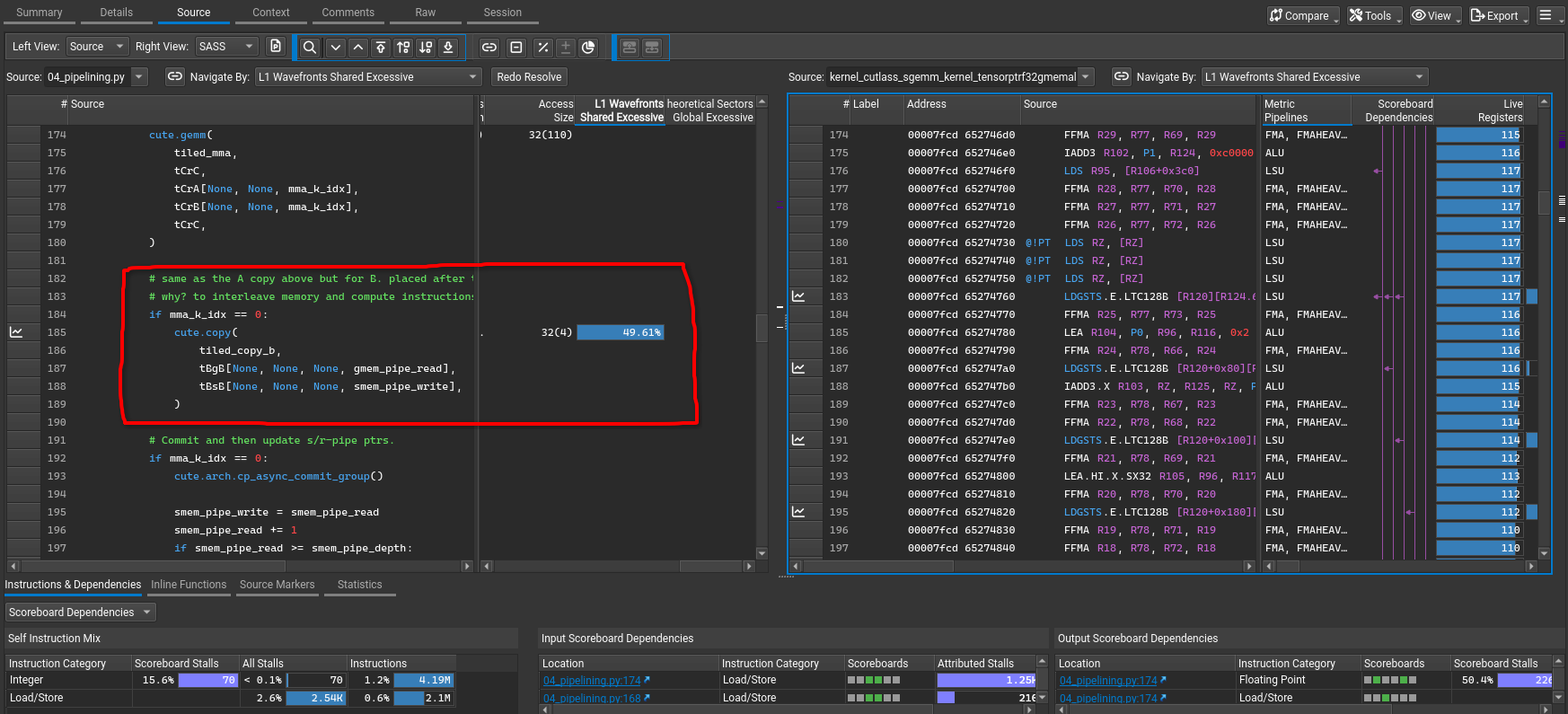

And if you want to directly inspect which source code line is having the major impact, you can directly navigate to the Source section.

Take a look at the highlighted section, it is in fact the tiled copy from GMEM to SMEM that is either bank conflicted or has a lot of uncoalesced accesses.

Kernel 5 - Warp tiling and Coalesced Epilogue

In this kernel, we introduce warp tiling. Instead of treating the full 256-thread CTA as one flat compute group, we divide the CTA tile into warp-owned subtiles.

cta_tiler = (128, 128, 8)
warp_tiler = (32, 64, 8)
wmma_tiler = (4, 8)

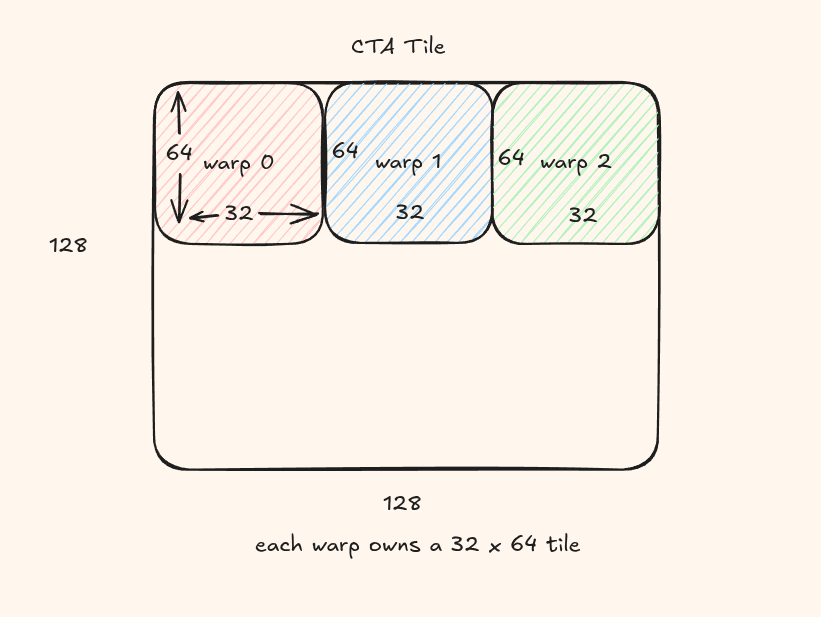

The CTA still computes a 128 x 128 tile, but now each warp owns a 32 x 64 region.

wrp_idm, wrp_idn = wrp_idx // num_warps_n, wrp_idx % num_warps_n
warp_coord_A = ((None, None), wrp_idm, None, None)
warp_coord_B = ((None, None), wrp_idn, None, None)
warp_coord_C = ((None, None), wrp_idm, wrp_idn)
wCsA = cute.tiled_divide(sA, (warp_m, warp_k))[warp_coord_A]
wCsB = cute.tiled_divide(sB, (warp_n, warp_k))[warp_coord_B]
wCsC_mma = cute.tiled_divide(sC, (warp_m, warp_n))[warp_coord_C]
wCgC_mma = cute.tiled_divide(gC, (warp_m, warp_n))[warp_coord_C]

Lanes

A warp has 32 threads. You can think of lane as a thread within that warp numbered 0 to 31.

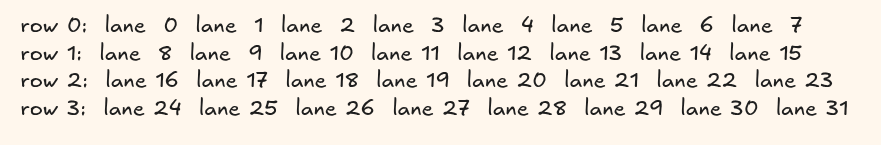

In our code, the warp's 32 lanes are arranged logically as (4, 8)

For our second idea, the lane within the warp decide the thread's role inside the warp's tile

So if warp picks which 32x64 tile, then the lane decides which part of the tile the thread exactly computes.

thr_mma = tiled_warp_mma.get_slice(lne_idx)
tCsA = thr_mma.partition_A(wCsA)
tCsB = thr_mma.partition_B(wCsB)
tCsC_mma = thr_mma.partition_C(wCsC_mma)
tCgC_mma = thr_mma.partition_C(wCgC_mma)

tCrA = tiled_warp_mma.make_fragment_A(tCsA[None, None, None, None, 0])
tCrB = tiled_warp_mma.make_fragment_B(tCsB[None, None, None, None, 0])
tCrC = tiled_warp_mma.make_fragment_C(tCgC_mma)
tCrC.fill(0.0)

Remember that a lane owns a fragment of the data, not a single value. This depends on the MMA tile we use.

An improved epilogue

There is also a very important improvement in the epilogue. In the previous kernel, accumulators are written more directly from registers to global memory. The problem is that accumulator fragments are arranged for compute but not for efficient global stores. Here, we introduce an intermediate shared-memory tensor sC as a staging area. Each warp first writes its accumulator fragment into shared memory. We then make a new register tensor to make the final global store coalesced. We again read from this shared memory and then finally to the global memory.

tCrC.store(epilogue_op(tCrC.load()))
cute.autovec_copy(tCrC, tCsC_mma)
cute.arch.sync_threads()
tCrC_copy = cute.make_rmem_tensor_like(tCsC_copy)
cute.autovec_copy(tCsC_copy, tCrC_copy)
cute.copy(tiled_copy_C, tCrC_copy, tCgC_copy)

This kernel gives a massive 11.17 TFLOP/s and we are at 97.2% of the cuBLAS performance!

Amazing, this kernel uses 52% of the peak fp32 performance and the compute breakdown actually shows that the FMA piepline is the most busy compared to the previous kernels where it was always being stalled by instructions.

Kernel 6 - Using a Column Major Layout

In this kernel, we use a column major format for matrix B. The entire compute pipeline remains the same but by using a column major format for B.

This kernel finally outperforms cuBLAS with 11.82 TFLOP/s, that is 102% of the cuBLAS performance!

By making this simple change, we also see the overall compute performance has also improved with peak fp32 performance climbing to 62%.

Next Steps

• Use tensor cores to accelerate computation (currently using a trivial 1x1x1 MMA atom).
• Introduce predicates to handle edge cases for all matrix sizes.
• Fix remaining uncoalesced memory accesses.
• Explore other segments of the NCU profiler.
• Map PTX instructions to verify assumptions.

References

A lot of this work has been inspired from these resources-

• CUTASS CuTe DSL SGEMM Example
• Siboem CUDA Matrix Multiplication Optimization
• Aleksa Gordic Matmul Optimization
• SGEMM on GPU
